Lubricants for the metalworking industry

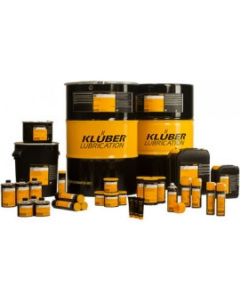

Klüber Paraliq P 68

Lubricating oils for the food-processing and pharmaceutical industries

Application Klüber Paraliq P 68

For all oil-lubricated friction points in the food-processing and pharmaceutical industries, e.g. gears, bearings, chains, spindles, joints. PARALIQ P 68 is also suitable for deep-drawing of aluminium foils. PARALIQ P 1500 can also be used for the lubrication of lifting, drive and conveyor chains.

FERROFORM LOCC

Rapid rust loosener with a very good lubricating effect

FERROFORM LOCC field of applications:

FERROFORM LOCC protects against corrosion and oxidation (caused by humidity). FERROFORM LOCC is used for cleaning of machine components, measuring devices and instruments. FERROFORM LOCC reduces squeaking and friction, e.g. on locks (including cylinder locks), hinges, springs, bicycle chains, mechanisms and appliances in industry, workshop, household and garden.

FERROFORM LOCC method of applications:

Let FERROFORM LOCC react for a short period to achieve the intended effect. In difficult cases, the procedure can be repeated.

Please note!! Price of FERROFORM LOCC drops automatically in larger quantities.

Q8 Berlioz XMR

Metalworking fluid

Soluble fluids that are free of formaldehyde, chlorinated paraffins and secondary amine.

Q8 Berlioz XMR is a full range of soluble metalworking grades designed to balance the latest European legislation requirements with performance. Q8 Berlioz XMR is a full compliment of products which encompasses the latest in additive technology and is designed to cover every application.

• Free from formaldehyde, secondary amines & chlorinated additives*.
• Fully compliant to TRGS 611 legislation.
• Covers a full range of applications & materials from economical to high performance.
• Demonstrates low foaming and stability in all water hardness.
• Superior bio-stability and corrosion protection.

Q8 Berlioz XMR

Metalworking fluid

Soluble fluids that are free of formaldehyde, chlorinated paraffins and secondary amine.

Q8 Berlioz XMR is a full range of soluble metalworking grades designed to balance the latest European legislation requirements with performance. Q8 Berlioz XMR is a full compliment of products which encompasses the latest in additive technology and is designed to cover every application.

• Free from formaldehyde, secondary amines & chlorinated additives*.
• Fully compliant to TRGS 611 legislation.
• Covers a full range of applications & materials from economical to high performance.
• Demonstrates low foaming and stability in all water hardness.
• Superior bio-stability and corrosion protection.

Klüber Paraliq P 12

Lubricating oils for the food and pharmaceutical industries

Application Klüber Paraliq P 12

PARALIQ P 12 and P 40 can be used for machines in the foodprocessing and pharmaceutical industries requiring medically pure oils, e.g. spindles, joints, chains, gearwheels, plain bearings, pistons, guides and tubular tracks. The oils can also be used for corrosion protection. PARALIQ P 12 can also be used as a heat transfer oil in enclosed systems in the food-processing, pharmaceutical and cosmetics industries.

Castrol Magna SW D 150 Way Oil

(formerly Magnaglide D 150)

Application

Magna SW D 150 is specially designed for the lubrication of all guideways, especially where a demulsifying oil is required to protect the way surfaces or ensure a long emulsion life. Magna SW D 150 meets the demands of challenging applications such as grinding machines, horizontal boring mills, or CNC machining centers. Magna SW D 150 can also be used as a combined hydraulic and way oil.

Examples of applications for Castrol Magna SW D 150 way oil include:

• + Exceptional resistance to stick-slip, resulting in higher production quality
• + Excellent demulsifying properties - prevents emulsion on the plastic way surfaces, thereby avoiding wear and downtime for repairs. The oil can be easily separated from emulsions, significantly extending their lifespan.
• + Protects metals against corrosion.
• + Excellent wetting, reducing way surface wear.

Castrol Magna SW D 68 slideway oil

(formerly Magnaglide D 68)

Examples of application of Castrol Magna SW D 68 slideway oil are:

• + Exceptional resistance to stick-slip, so higher quality of production
• + Very good demulsifying property - prevents emulsion on the plastic pipes and thus avoids wear and downtime for repair. The oil can easily be removed from emulsions, which can significantly extend their tool life.
• + Protects metals from corrosion.
• + Excellent wetting which reduces the wear and tear on the track

Castrol Magna SW D 220 slideway oil

(formerly Magnaglide D 220)

Examples to apply Castrol Magna SW D 220 slider oilare:

• + Exceptional resistance to stick-slip, so higher quality of production
• + Very good demulsifying property - prevents emulsion on the plastic pipes and thus avoids wear and downtime for repair. The oil can easily be removed from emulsions, which can significantly extend their tool life.
• + Protects metals from corrosion.
• + Excellent wetting which reduces the wear and tear on the track

Please note ! Price Castrol Magna SW D 220 slate oil drops automatically with larger quantities.

Castrol Magna SW D 32 slideway oil

(formerly Magnaglide D 32)

Examples of application of Castrol Magna SW D 32 slideway oilare:

• + Exceptional resistance to stick-slip, so higher quality of production
• + Very good demulsifying property - prevents emulsion on the plastic pipes and thus avoids wear and downtime for repair. The oil can easily be removed from emulsions, which can significantly extend their tool life.
• + Protects metals from corrosion.
• + Excellent wetting which reduces the wear and tear on the track

Solvent based degreaser previously Houghton Callina 2306 & 2201

Properties of Houghto-Clean 510

Houghto-Clean 510 is an extremely versatile slow evaporating solvent cleaner.


Application of Houghto-Clean 510

Houghto-Clean 510 has been formulated for manual and and immersion cleaning applications as an alternative to to halogenated and other user and environmentally and unacceptable solvent cleaners.

Houhto-Clean 510 has been formulated has to remove low viscosity neat oils, greases, waxes and similar type soils from ferrous and non-ferrous metals, solvent resistant composites plastics and elastomers.

Degreasing of parts before assembly or welding is not necessary. Cleaned surfaces are left with a virtually imperceptible light coating which can provide temporary corrosion pretection of ferrous metals.

Houghton Macron EDM 110 Neat Oil for Spark Erosion

MACRON EDM 110 is based on aliphatic hydrocarbons with very low content of aromatics for improved working conditions. High dielectric strength and good flushing properties contribute to a high removal capacity.

Houghton Garia 601 M-22

It is based on hydro treated mineral oils with a low aromatic content.It's formulated to a combination of polar, extreme pressure and anti-wear additives.

Properties

Its composition gives the oil high load carrying properties. Its high additive content and controlled extreme pressure properties allow high rates of metal removal, which results in reduced machining costs.

The oil provides good tool life and excellent surface finish of the machined work pieces. Efficient anti mist additives reduce mist in the air.

Due to its active sulphur content, the oil may discolor yellow metals.

Application

Garia 601 M-22 is recommended for machining high alloyed steels, stainless, heat resistant or austenitic steels and aluminum or magnesium alloys. The oil gives excellent results with many difficult operations such as broaching, deep-hole drilling, tapping, shaping or shaving of gears.

Houghton Garia 405 M-32

Garia 405 M-32 is a neat cutting oil. It is commonly used for machining higher alloyed steels, aluminum and magnesium alloys.

Properties

Garia 405 M-32 is a chlorine free product. It is free of heavy metals and has a low aromatic content. It contains a well balanced combination of polar, extreme pressure and antiwear additives which give the oil high load carrying properties.

Due to its active sulphur content, the oil may discolor yellow metals.

Applications

Garia 405 M-32 is recommended for general machining operations such as turning, drilling and gear hobbing on steel of low to medium tensile strength, aluminum and magnesium alloys. It is also suitable for grinding where higher viscosity is required, e.g. thread grinding.

QH Pressmax VE 2660

VANISHING STAMPING OIL

Application QH Pressmax VE 2660

QH PRESSMAX™ VE 2660 is an evaporative product for stamping and drawing of thin non-ferrous and ferrous materials. The product does not leave a residual film or react with paint. Degreasing of parts before assembly or welding is not necessary. QH PRESSMAX™ VE 2660 is mainly used for non ferrous materials. .

CASTROL Almaredge 230 K

High performance soluble metal working fluid

Application CASTROL Almaredge 230 K

Almaredge 230 K is especially designed for machining of aluminium alloys. The product can also be used for machining of low-medium alloyed steel.

Houghton Dromus B

Water miscible metalworking fluid.

Houghton Dromus B is a general purpose soluble oil for light to moderate duty machining on a wide range of materials.

It is free from biocides.

Properties:

Dromus B is a high mineral oil content soluble oil for easy to medium duty machining, including grinding, on a wide variety of materials including ferrous as well as nonferrous metals.

Recommendations for use: General machining 6 - 8 %, Severe cutting operations 8 - 12 %.

CASTROL Iloform PN 226

High performance neat cutting oil

Application CASTROL Iloform PN 226

Iloform PN 226 is specially formulated for use in single die and progressive die presses for medium to heavy deep drawing applications. It is suitable for use on steels, stainless steels and nickel alloy steels

Adrana A 2859 has now been removed from the range and can best be replaced by Hocut 4444. It is wise to contact us and discuss the application.

Please note We will deliver Hocut 4444 instead of Adrana A2859 if you wish to order it above.

Hereby the link for more information about Hocut 4444

Houghton Adrana D 208.01 new name will change into Hocut 3220

Water miscible metalworking fluid.

Properties

Hocut 3220 is a high quality, general-purpose metalworking fluid for easy to medium duty applications on ferrous metals.

Applications:

It is recommended for easy to medium duty operations on cast iron and (low to medium alloyed) ferrous metals.

It is designed to be used on CNC machine tools, given its excellent detergent, and high wetting properties.

Hocut 3220 is suitable for all removal and grinding operations on stand-alone machines and in central systems.

Hocut 3220 can be used over a broad water hardness range. Recommendations for use: General machining.

Houghton 4444 previous Sitala D 201.03 and Adrana D 601.01

Hocut 4444 is a high quality water miscible coolant for general machining of steel and aluminum alloys.

Recommended usage levels for Houghton Hocut 4444 are:

• + Low to Medium Machining: 8 - 10%

Application Houghton Hocut 4444

HOCUT 4444 is recommended for machining low to medium materials, including high stress machining, from a variety of materials, including aluminum alloys, fiber composites, but also iron alloys.
